جزئیات محصول
Place of Origin: China
نام تجاری: MARSHINE
گواهی: CE
Model Number: SHD
شرایط پرداخت و حمل و نقل
Minimum Order Quantity: 1PC
قیمت: usd, 300-600, set
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Model NO.: |
508 |
Rated Load: |
5~20kn |
Net Weight: |
30~268kg |
Packing: |
Bulk Pack with Wooden Board |
Sheave Features: |
1-7 |
Product Name: |
508mm Large Diameter Stringing Pulley Block |
Transport Package: |
Carton Box |
Specification: |
Nylon Or Cast Steel Sheave |
HS Code: |
8428909090 |
Supply Ability: |
20000PCS/Month |
Standard or Nonstandard: |
Standard |
Feature: |
Anti-Static, Oil-Resistant, Acid-Resistant |
Application: |
Garment Machinery, Conveyer Equipment, Mining Equipment |
Surface Treatment: |
Oxygenation |
Material: |
Aluminum |
Technics: |
Welding |
Model NO.: |
508 |
Rated Load: |
5~20kn |
Net Weight: |
30~268kg |
Packing: |
Bulk Pack with Wooden Board |
Sheave Features: |
1-7 |
Product Name: |
508mm Large Diameter Stringing Pulley Block |
Transport Package: |
Carton Box |
Specification: |
Nylon Or Cast Steel Sheave |
HS Code: |
8428909090 |
Supply Ability: |
20000PCS/Month |
Standard or Nonstandard: |
Standard |
Feature: |
Anti-Static, Oil-Resistant, Acid-Resistant |
Application: |
Garment Machinery, Conveyer Equipment, Mining Equipment |
Surface Treatment: |
Oxygenation |
Material: |
Aluminum |
Technics: |
Welding |

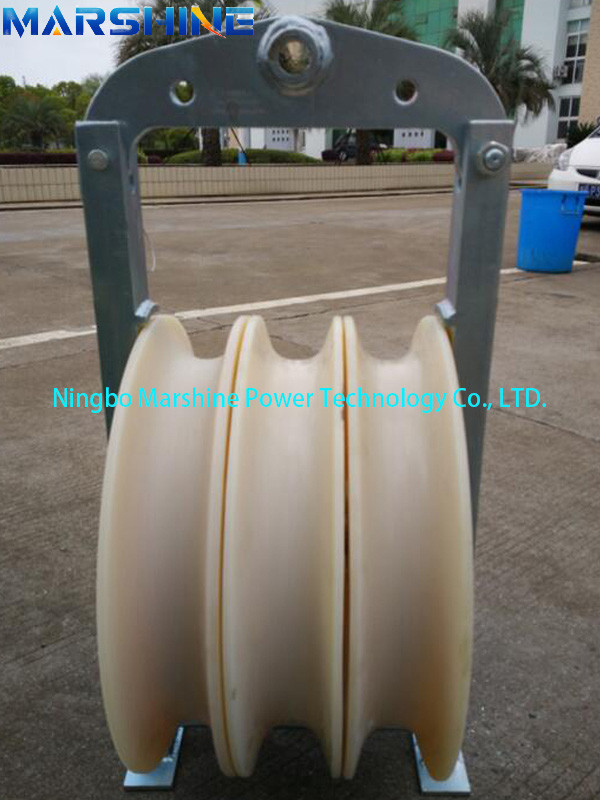

30-268kg Stringing Pulley Block Nylon Sheaves Conductor Pulley For Garment Machinery
This 508mm Large Diameter Stringing Block,large diameter stringing pulley block and stringing conductor block comes with the maximum suitable conductor LGJ400. In other words, our product is adaptable to the conducting wire which has the aluminum's nominal cross section of up to 400 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ508×Φ408×75 (mm).
Specifications
|
Item Number |
Model |
Number of Sheave |
Rated Load (kN) |
Weight (kg) |
Features of Sheave |
|
10101 |
SHD508 |
1 |
20 |
18 |
Rubber coated aluminum sheave |
|
10102 |
SHS508 |
3 |
40 |
61 |
Middle: cast steel sheave Conductor: Rubber coated aluminum sheave |
|
10103 |
SHW508 |
5 |
60 |
93 |
|
|
10104 |
SHDN508 |
1 |
20 |
16 |
MC nylon sheave |
|
10105 |
SHSLN508 |
3 |
40 |
47 |
Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel |
|
10106 |
SHWLN508 |
5 |
60 |
79 |
|
|
10107 |
SHSQN508 |
3 |
40 |
43 |
MC nylon sheave |
|
10108 |
SHWQN508 |
5 |
60 |
70 |
Note:
1.Maximum suitable conductor ACSR400
2.Block dimension (outside diameter *root diameter*sheave width)Φ508*Φ408*75mm.
3.sheave dimension Φ508*Φ408*100mm can be customized.
